KNX Push Button Sensor, 8 buttons
KNX Push Button Sensor, 8 buttons is mainly applied in building control system, connected to the
bus via KNX connection terminals and installed together with other devices on the bus to become a
system. It’s functionally simple and intuitive to operate. Users can plan according to their own needs to
performs these functions in the system.
model
Push button module: CHBRL-08/00.1.21 (Without relay) CHBRL-08/04.1.21 (With 4 relays) Push button accessory: CHKA-08/L.1.2x (x=1: Black; x=2: Silver; x=3: Gray; x=4: Golden)
colour

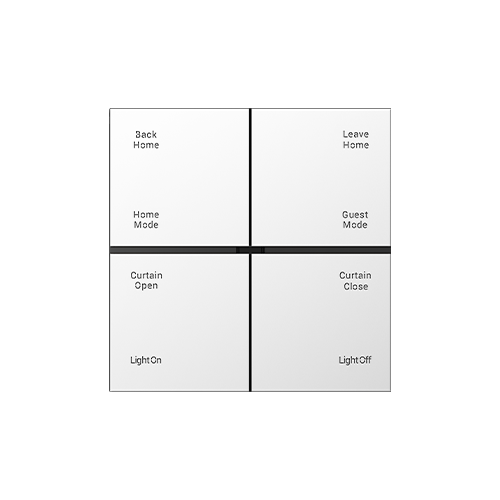

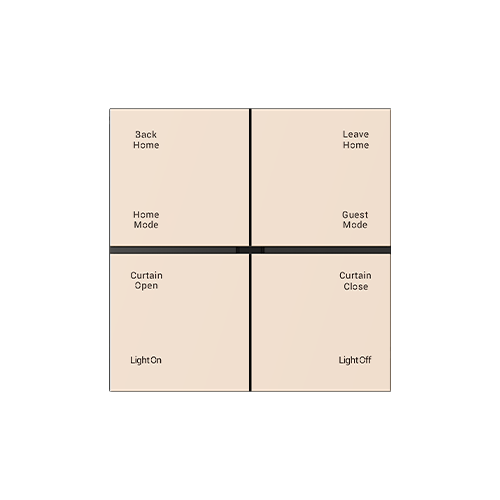

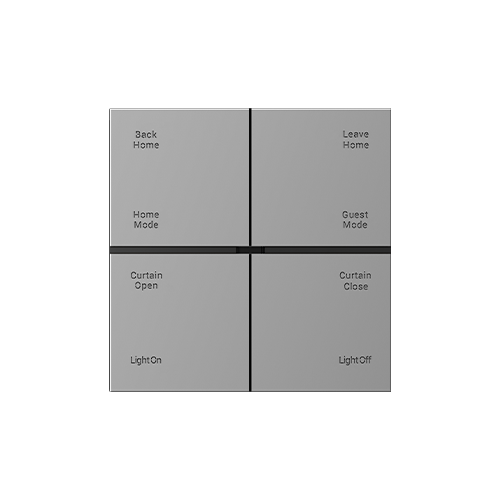

Golden / Gray / Silver / Black
Product parameters
Power Supply
Bus voltage
21-30V DC，via the KNX bus
Bus current
<12.0mA/24V; <9.2mA/30V
Bus consumption
<0.3W
