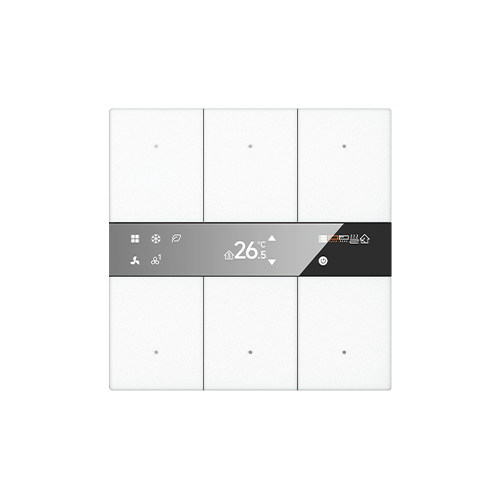

S series KNX Multifunctional Thermostat, 6 Buttons
S series KNX Multifunctional Thermostat, 6 Buttons is mainly applied in building control system,
connected to the bus via KNX connection terminals and installed together with other devices on the bus
to become a system. It’s functionally simple and intuitive to operate. Users can plan according to their
own needs to performs these functions in the system.
model
CHMTB-06/S.x.yz (x=1: Normal glass; x=2: Mirror glass) (y=1: Glass; y=2: Metal) (z=0: White; z=1: Black; z=3:Gray; z=4:Golden)
Product parameters
Power Supply
Bus voltage
21-30V DC, via the KNX bus
Bus current
<26mA/24V；<20mA/30V
Bus consumption
<0.63W
Connection
KNX
Bus connection terminal(Red/Black)
Operation and display
Programming button and red
LED
For assigning the physical address
Temperature
Operation
– 5 °C ... 45 °C
Storage
– 25 °C ... 55 °C
Transport
– 25 °C ... 70 °C
Environment
Humidity
<93%, except dewing
Dimension
86 × 86 × 35.6mm
Weight
0.17kg
Mounting
European 80 type wall-mounted box or 86 type wall-mounted box
