KNX Glass Sensor GS3
KNX Glass Sensor GS3 are mainly applied in building control system, connecting to the bus via
KNX connection terminals and installing together with other devices on the bus to build a system. They
are functionally simple and intuitive to operate. Users can plan according to their own needs to
perform these functions in the system.
model
CHTBD-06/3.2.1x (Standard), CHTBD-06/5.2.1x (Pro)
colour

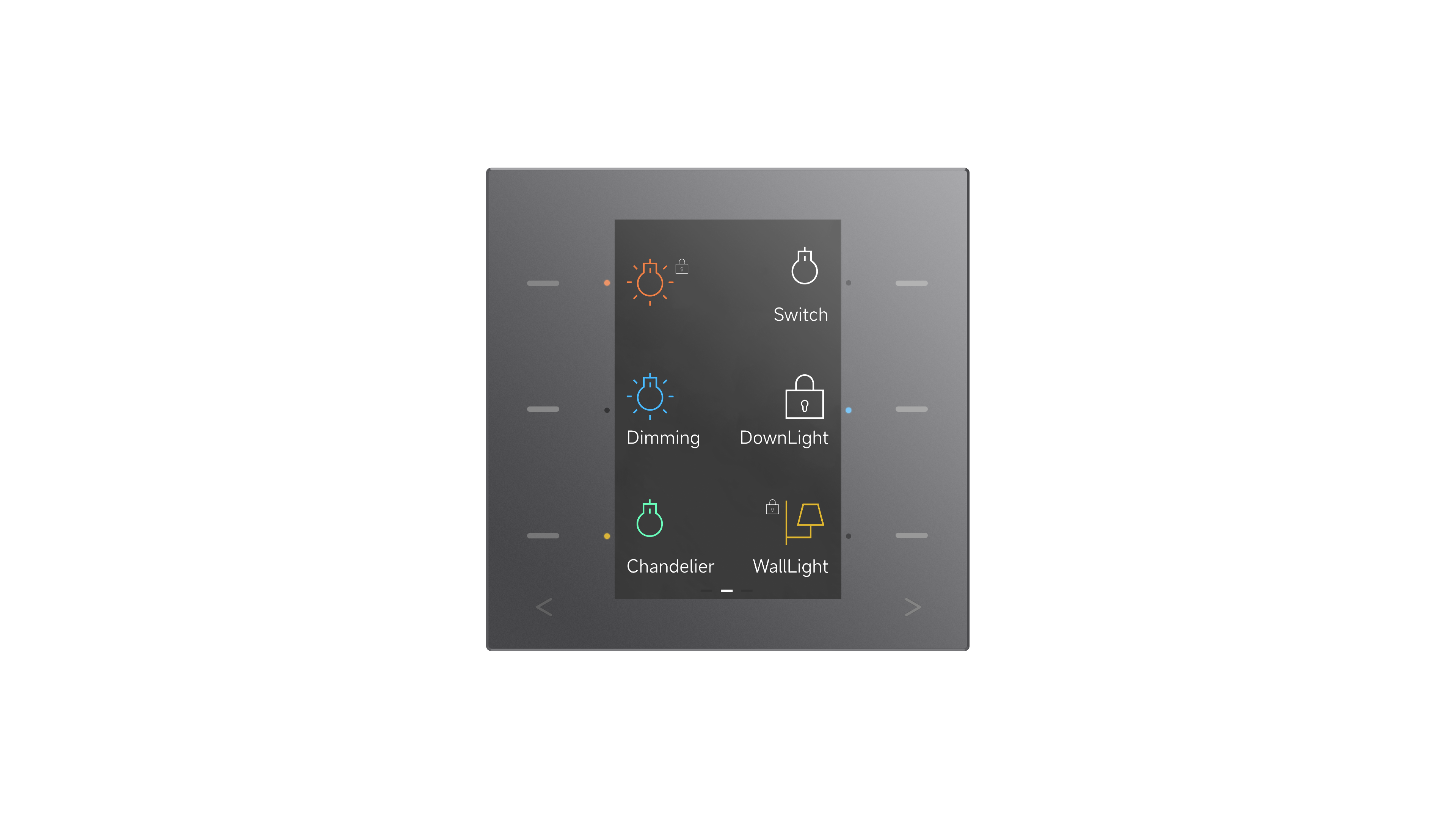

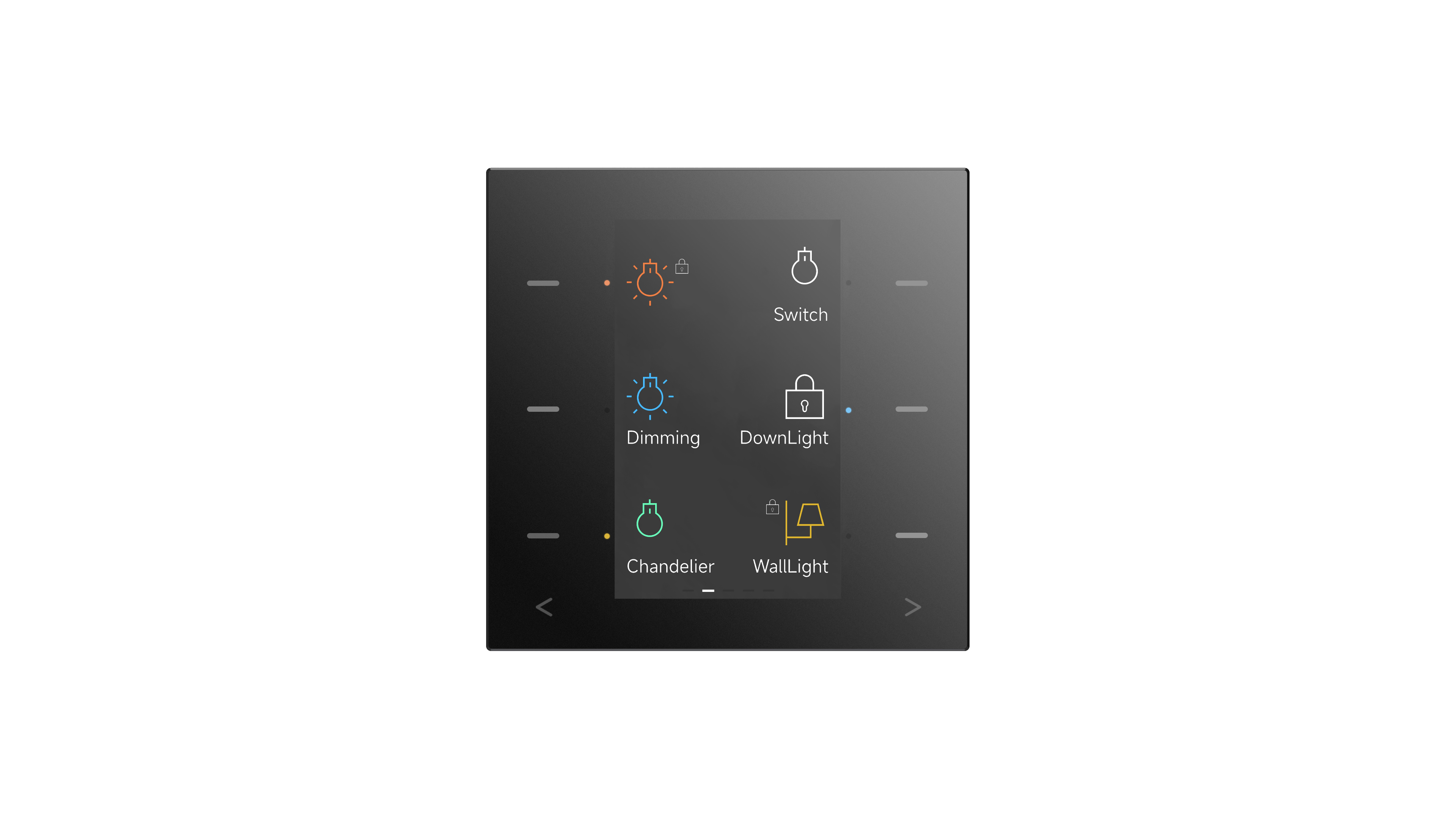

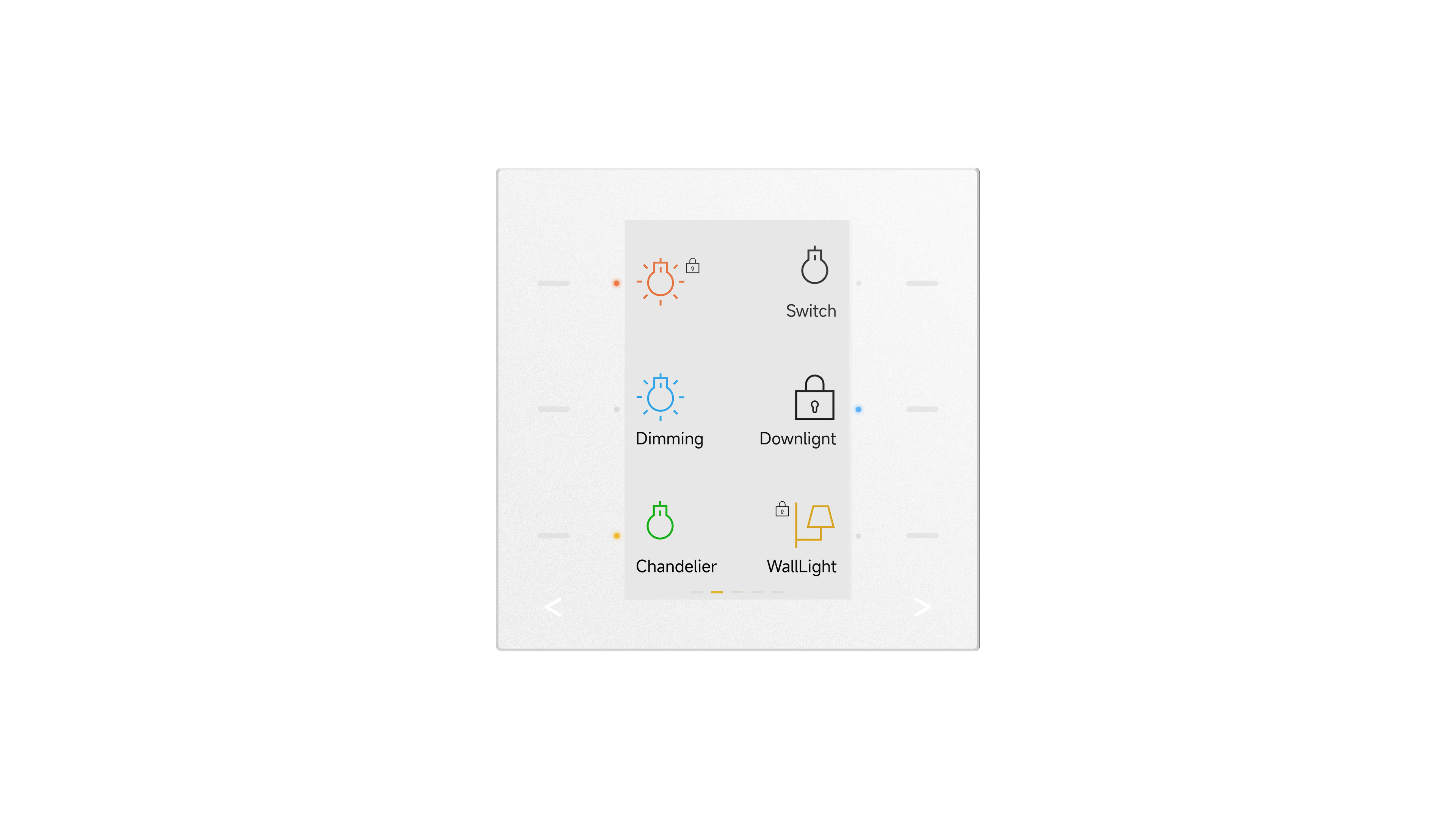

Gold / Black / White / Gray
Product parameters
Power Supply
Bus voltage
21-30V DC, via the KNX bus
Bus current
<26.5mA/24V; <20.5mA/30V
Bus consumption
<0.64W
Input
2 external inputs, as dry contact input or 10K NTC input
Connection
KNX
Bus connection terminal
Input
A three-wires connection terminal, cable
length <5m
Operation and display
Programming button
and red LED
For assigning the physical address
Proximity sensor
Normal: 10-30cm; Enhanced: 40-60cm; High: 70-100cm
Note: the data is referred from internal laboratory, there may be
differences in results depending on the person
Temperature
Operation
– 5 °C ... + 45 °C
Storage
–25 °C ... + 55 °C
Transport
– 25 °C ... + 70 °C
Environment
Humidity
<93%, except dewing
Mounting
European 80 type wall-mounted box or 86 type wall-mounted box
Dimension/Weight
92*92*35.6mm/0.21kg
